SINGLE PHASE PREPAID CONNECTED ENERGY METER
SINGLE PHASE PREPAID CONNECTED ENERGY METER
General View

GPM-PC01 Single-phase prepaid connected energy meter is a modern, advanced-level instrument designed and manufactured according to the actual power consumption of industrial users by using large-scale integrated circuits, digital sampling processing technology, and SMT process. The product complies with the regulations of the international standard IEC62052-11: 2003 (Metering equipment) and EN50470-3.

  • Measures forward/reverse energy
  • Supports multi-step tariff
  • Records monthly extra fees and event logs
  • Equipped with an optical port for communication and firmware updates
  • Relay control for overload and tamper protection
  • Low credit alarm via LED blinking
  • Friendly mode prevents disconnection during holidays or weekends
  • Card-based recharge system with multiple card types
  • DLMS/COSEM
  • NFC
Meter Type:
Single-phase, two-wire, direct-connected
Accuracy Class:
Class 1.0 for active energy measurement
Display:
LCD with Arabic interface for user-friendly operation
Current Rating:
10(80)A
Voltage Rating:
220V (operating range: +15% to -40%)
Frequency:
50 Hz ±5%
Protection:
IP54-rated enclosure for dust and water resistance
RTC Accuracy:
±0.5 seconds per day
Pulse Constant:
1000 imp/kWh
Design:
Compact, wall-mounted structure
Material:
Polycarbonate (base, cover, terminal) fire-resistant
Display Capabilities
  • Remaining credit (KWH & EGP)
  • Tariff code and rate
  • Monthly consumption history (up to 12 months)
  • Real-time voltage, current, power factor
  • Tamper and overload indicators
  • Relay status and meter mode
  • Date, time, and billing cycle data
Security & Tamper Detection
  • Meter cover opening
  • Terminal cover tampering
  • Current reversal
  • Bypass attempts
  • Overload events
  • Low battery voltage
  • Supports AES-128 encryption for secure data exchange
User Cards
  • Account opening
  • Recharge
  • Replacement
Functional Cards
  • Tariff update
  • Tamper clearing
  • Data collection
Error Codes
  • Displayed on LCD for quick troubleshooting
Smart Billing Logic
Configurable billing time (hourly).
Stores last 12 months of billing data.
Auto-save consumption data during power-off.
Reinitializes readings upon power restoration.

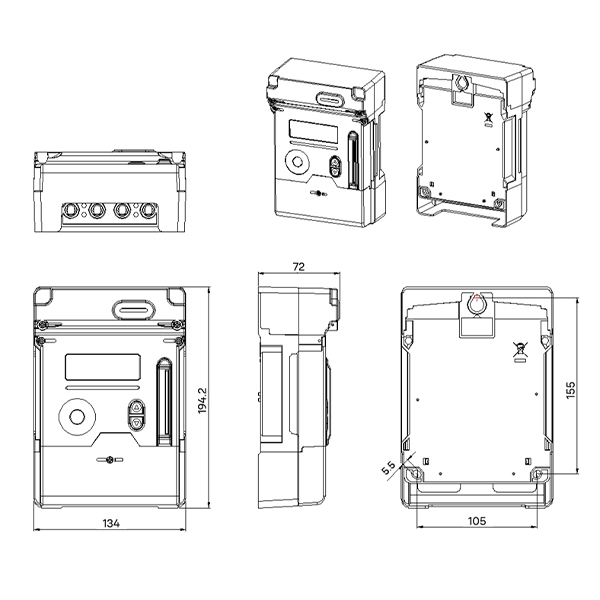

(L X W X H) 220 mm x 140 mm x 75 mm

  • Optical port (IEC 62056-21)
  • Dual RS485 ports with RJ45 terminals enable reliable digital communication and system integration.
  • PLC+RF (G3/PRIME V1.4)
  • 3G / 4G / NB-IOT
  • DLMS/COSEM compliant.
  • Modular plug-and-play communication unit.
  • Remote firmware upgrade capability
